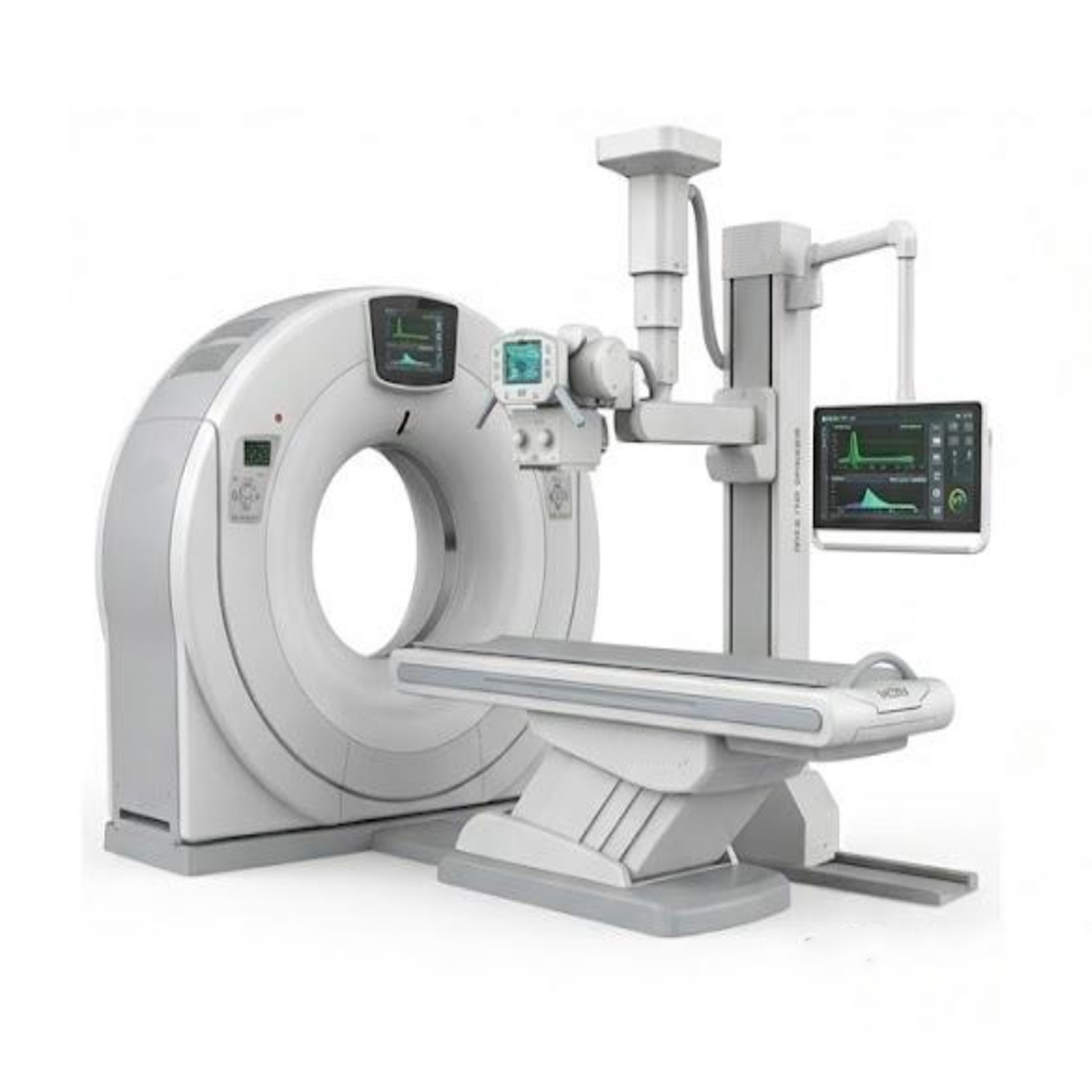

A high-performance 16-slice computed tomography system designed to provide detailed cross-sectional imaging for routine and advanced diagnostic examinations. The system combines a large-aperture gantry, high-resolution detector technology, and rapid image acquisition to support efficient whole-body CT imaging. Its wide scanning space and robust patient table accommodate a broad range of patients while supporting applications ranging from routine diagnostic imaging to CT angiography, tumor localization, and radiotherapy planning.

Key Features

• 16-slice CT imaging with a 32-row detector configuration
• Large 76 cm gantry aperture for improved patient accessibility
• High-resolution imaging with spatial resolution of up to 20 lp/cm
• 5.3 MHU X-ray tube for demanding clinical workloads
• 50 kW generator for efficient image acquisition
• Rapid 0.5-second rotation speed
• High-precision patient table with up to 250 kg load capacity
• Advanced detector technology designed to reduce image artifacts and improve image quality
• Supports large-range and multi-phase scanning
• Compatible with CT angiography (CTA) examinations
• Advanced image reconstruction and processing capabilities
• User-friendly interface designed to streamline scanning workflows
• Large scanning range suitable for whole-body examinations
• Designed for flexible clinical applications, including oncology and radiotherapy planning

Clinical Application

The CT system is designed for diagnostic imaging across a broad range of clinical applications, including head, chest, abdominal, pelvic, and musculoskeletal examinations. It can support the evaluation of tumors, trauma, vascular conditions, and other abnormalities requiring detailed cross-sectional imaging. Its large-aperture design and high-resolution imaging capabilities also make it suitable for CT angiography, tumor localization, radiotherapy simulation and positioning, and selected image-guided or interventional procedures.
